Sparkwall Series Top Venting Wall Hanging In Linear Fireplaces
ELECTRIC FIREPLACES > LINEAR SERIES
•Top venting electric fireplaces keep your home warmer, increase efficiency, and reduce the amount of wasted energy.
•Total is two venting holes, the top one is the air outlet for heating other for the air inlet.

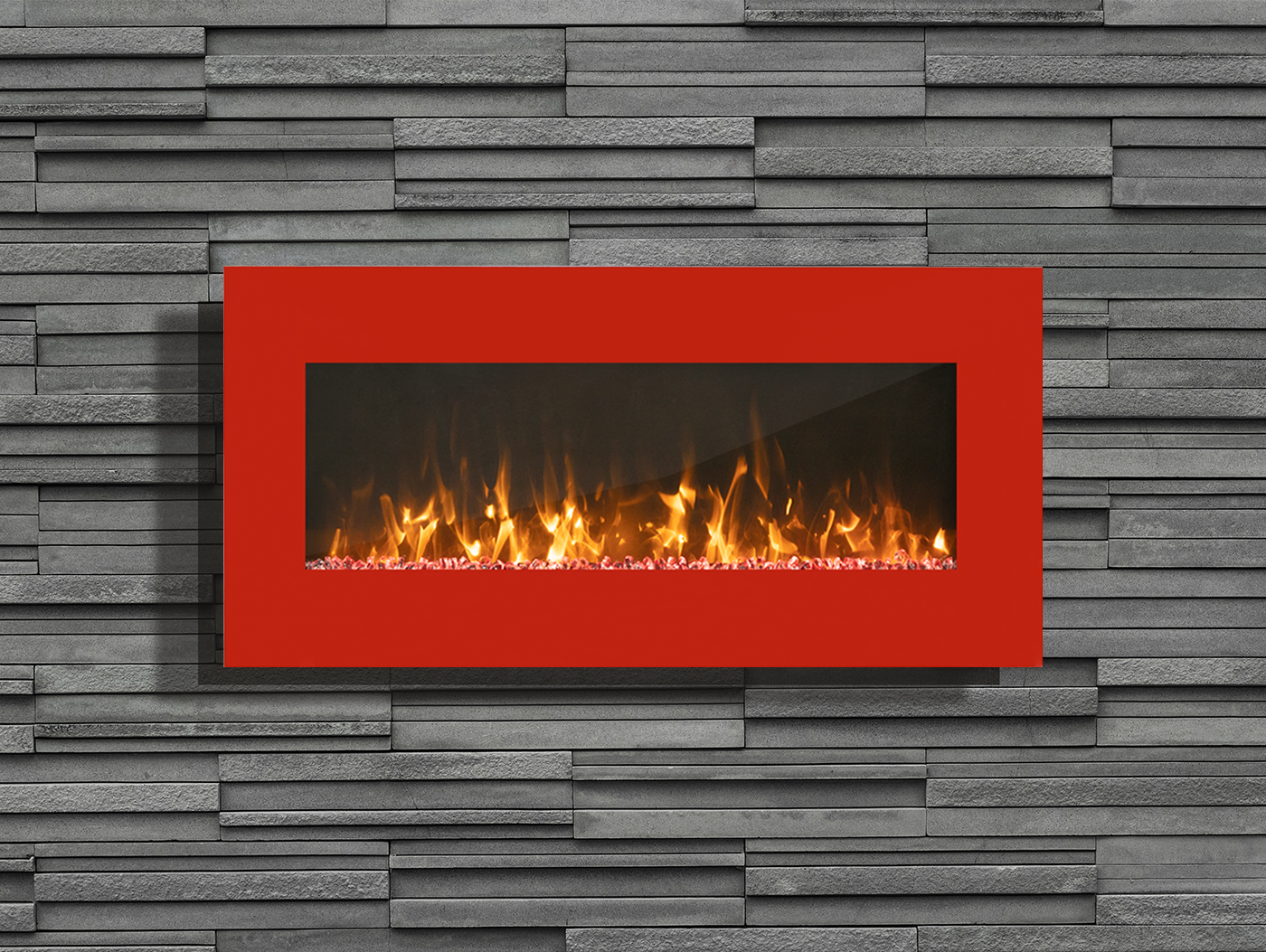

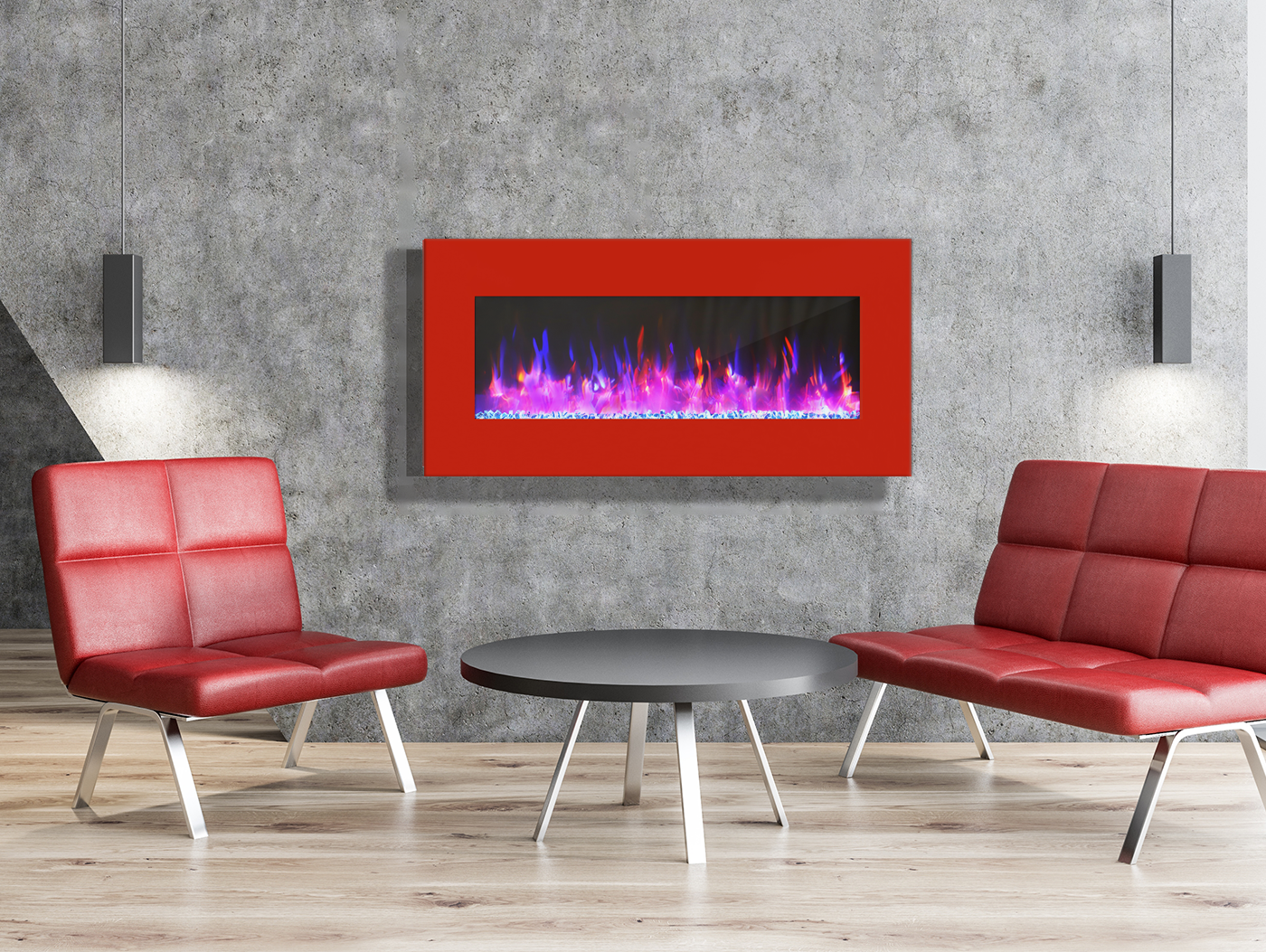

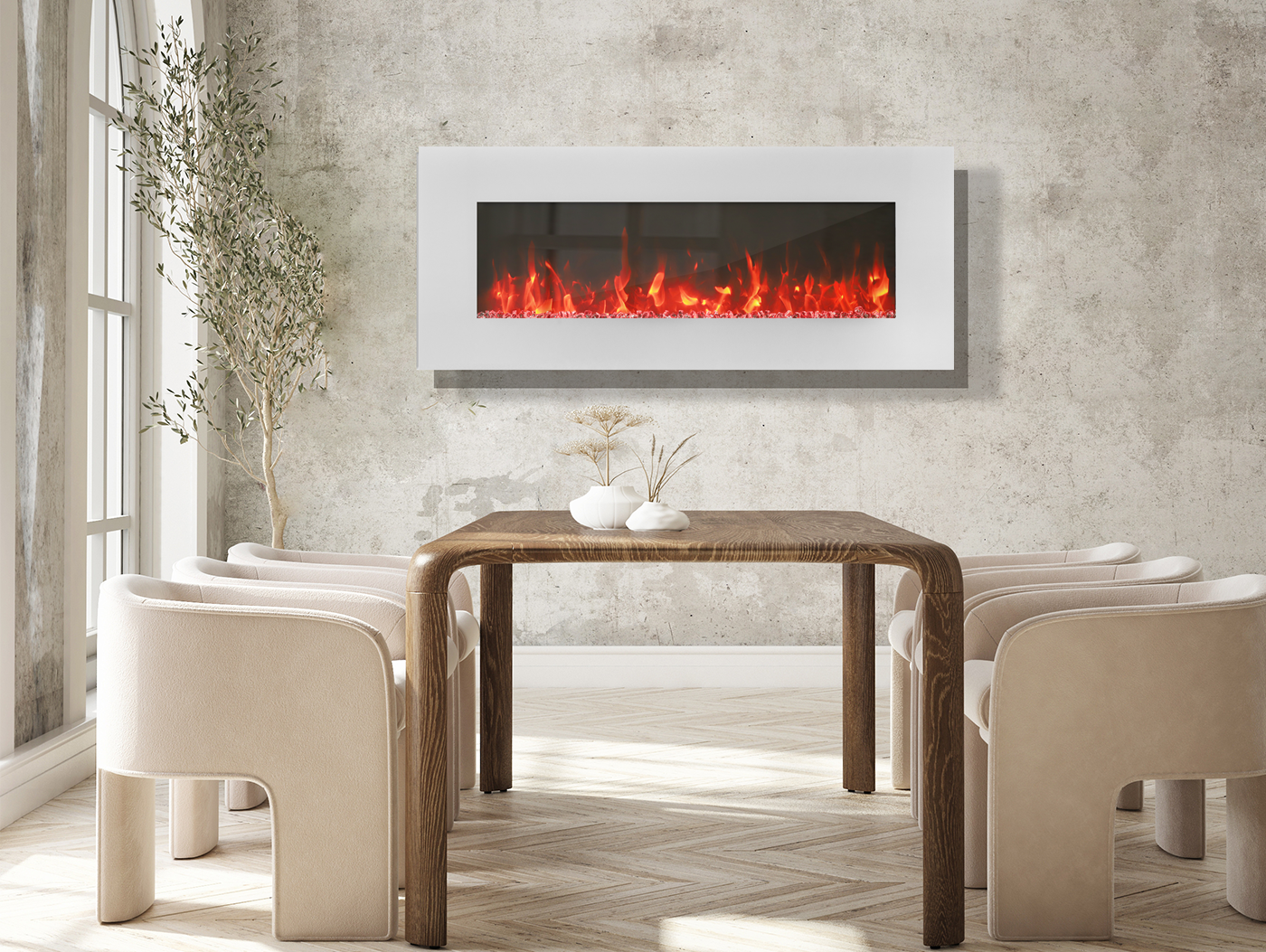

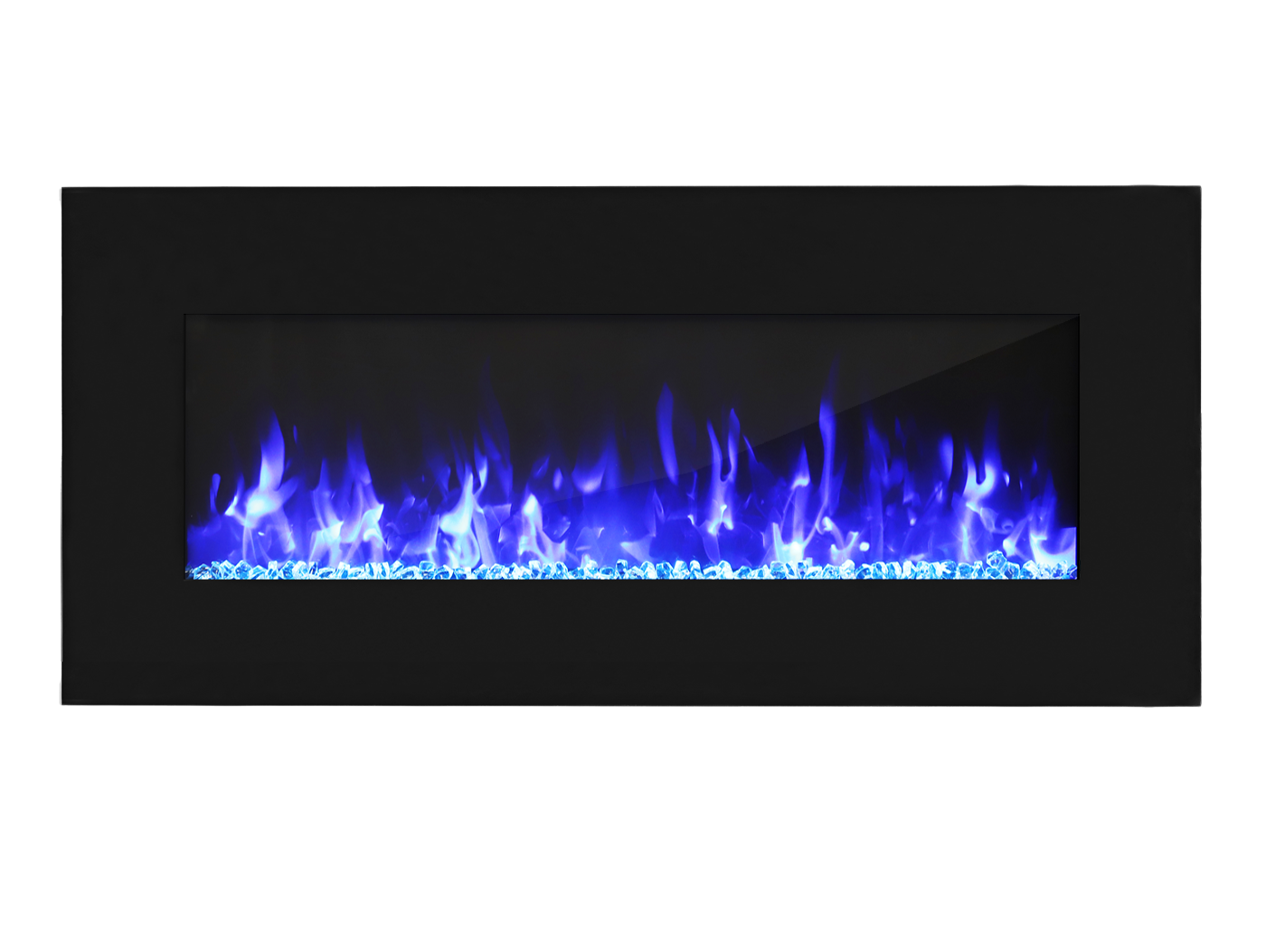

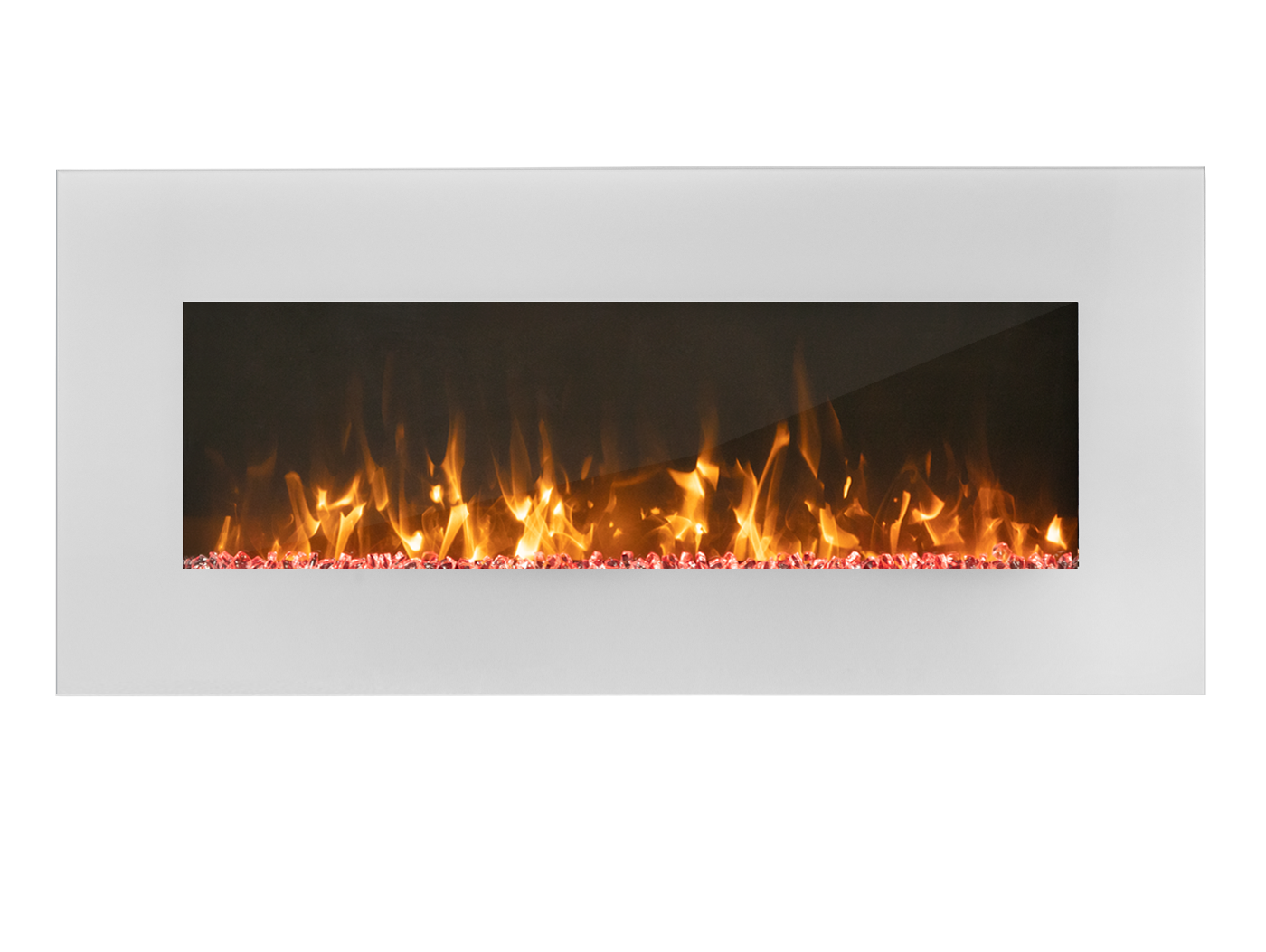

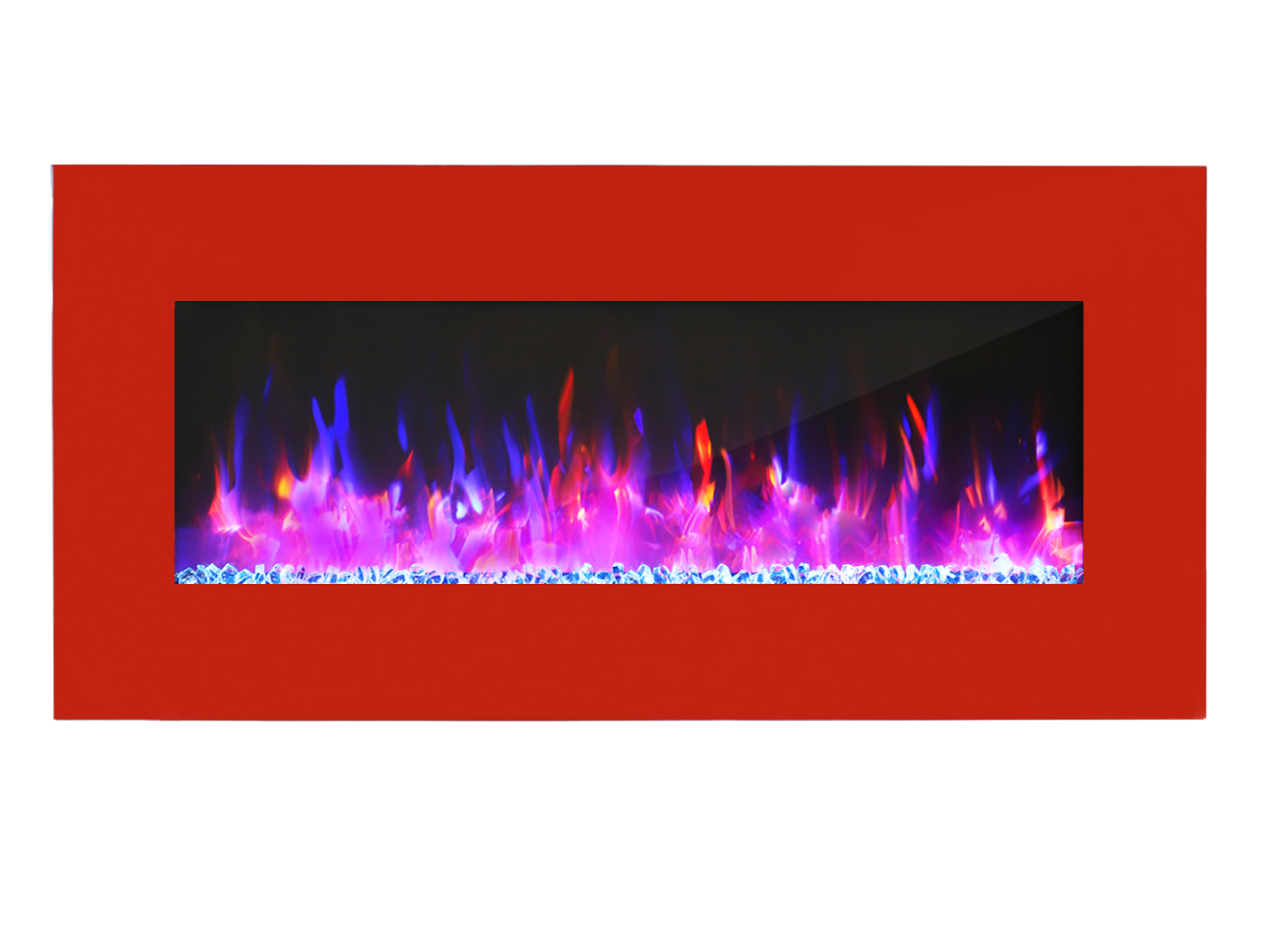

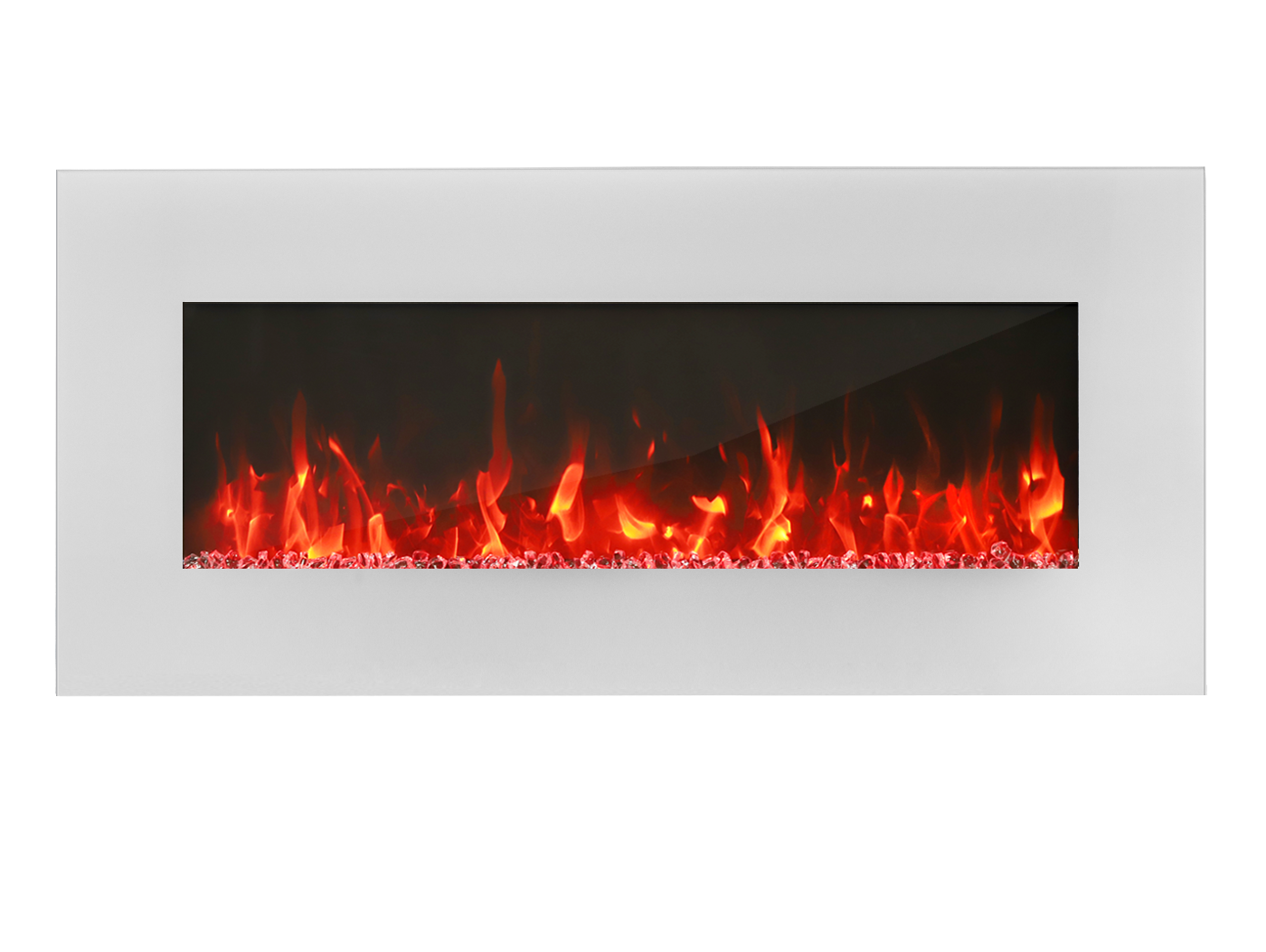

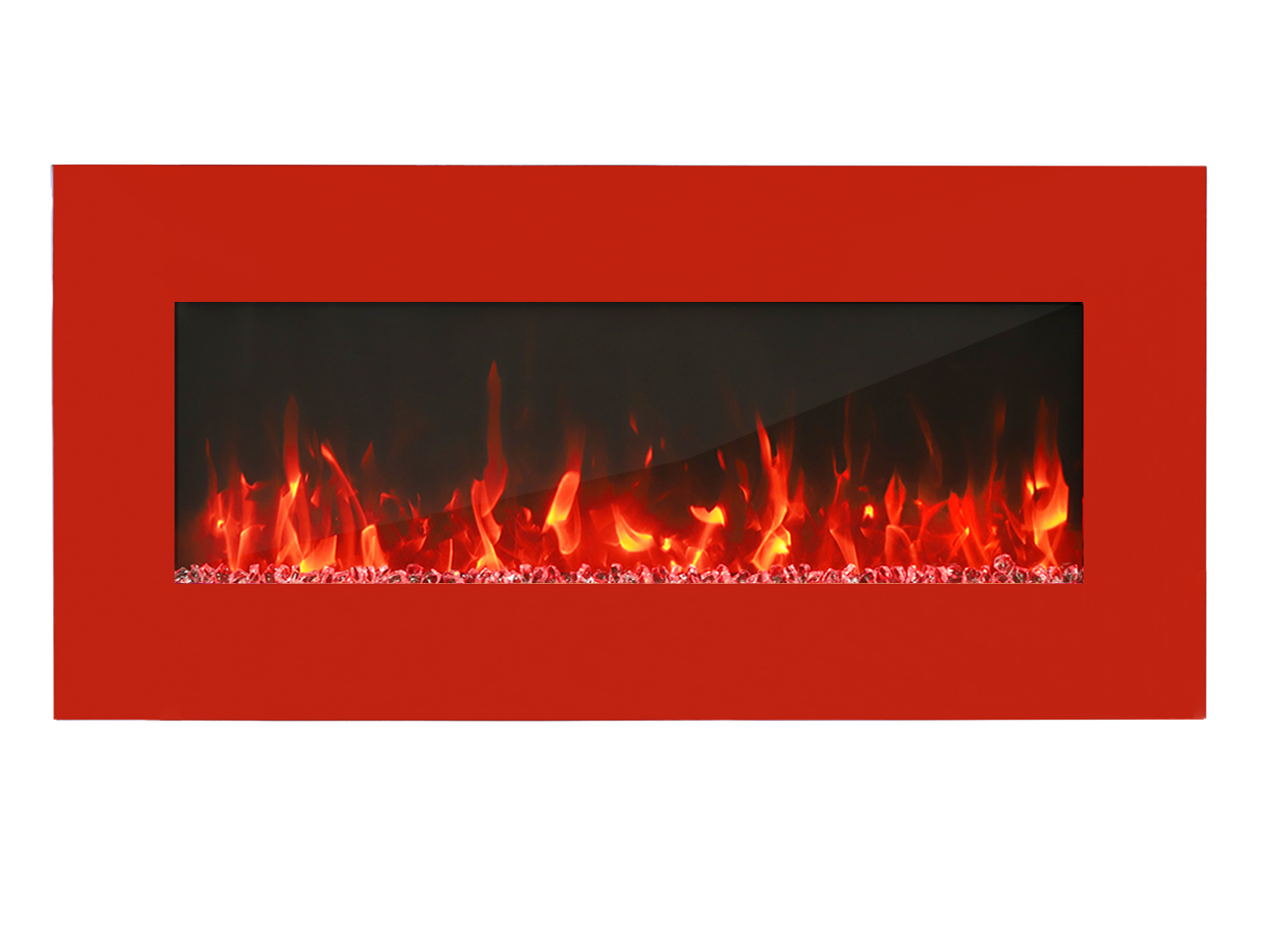

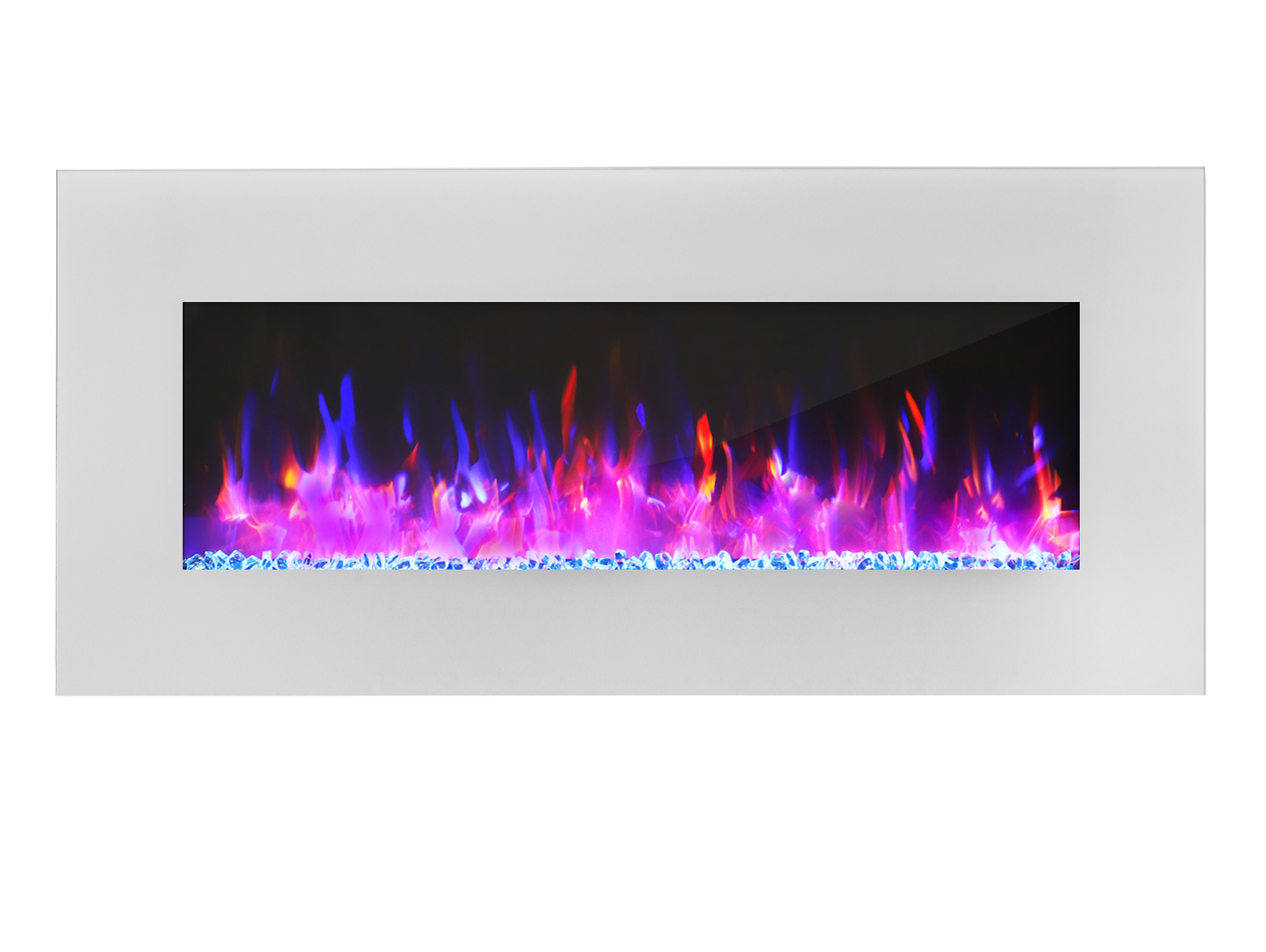

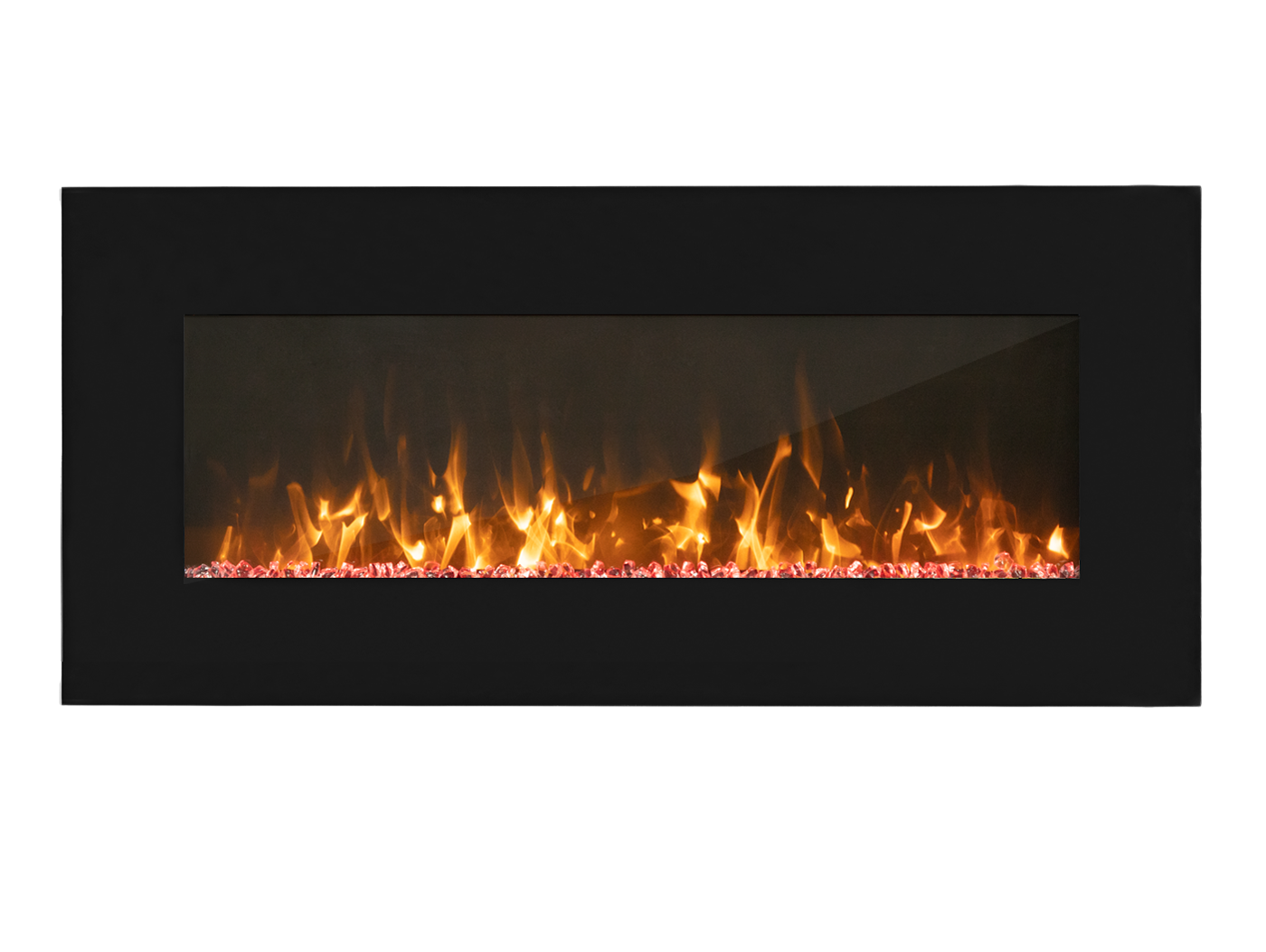

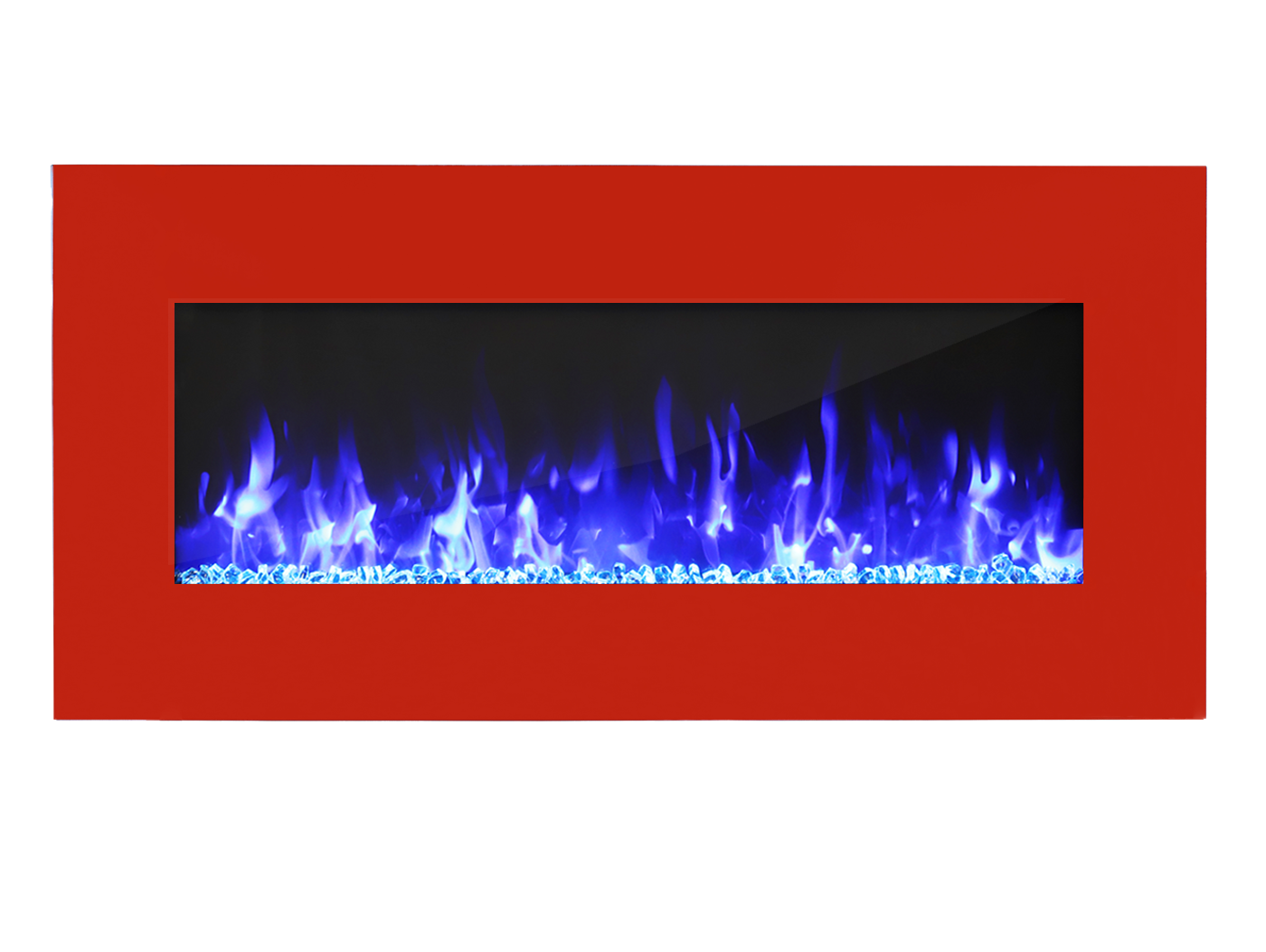

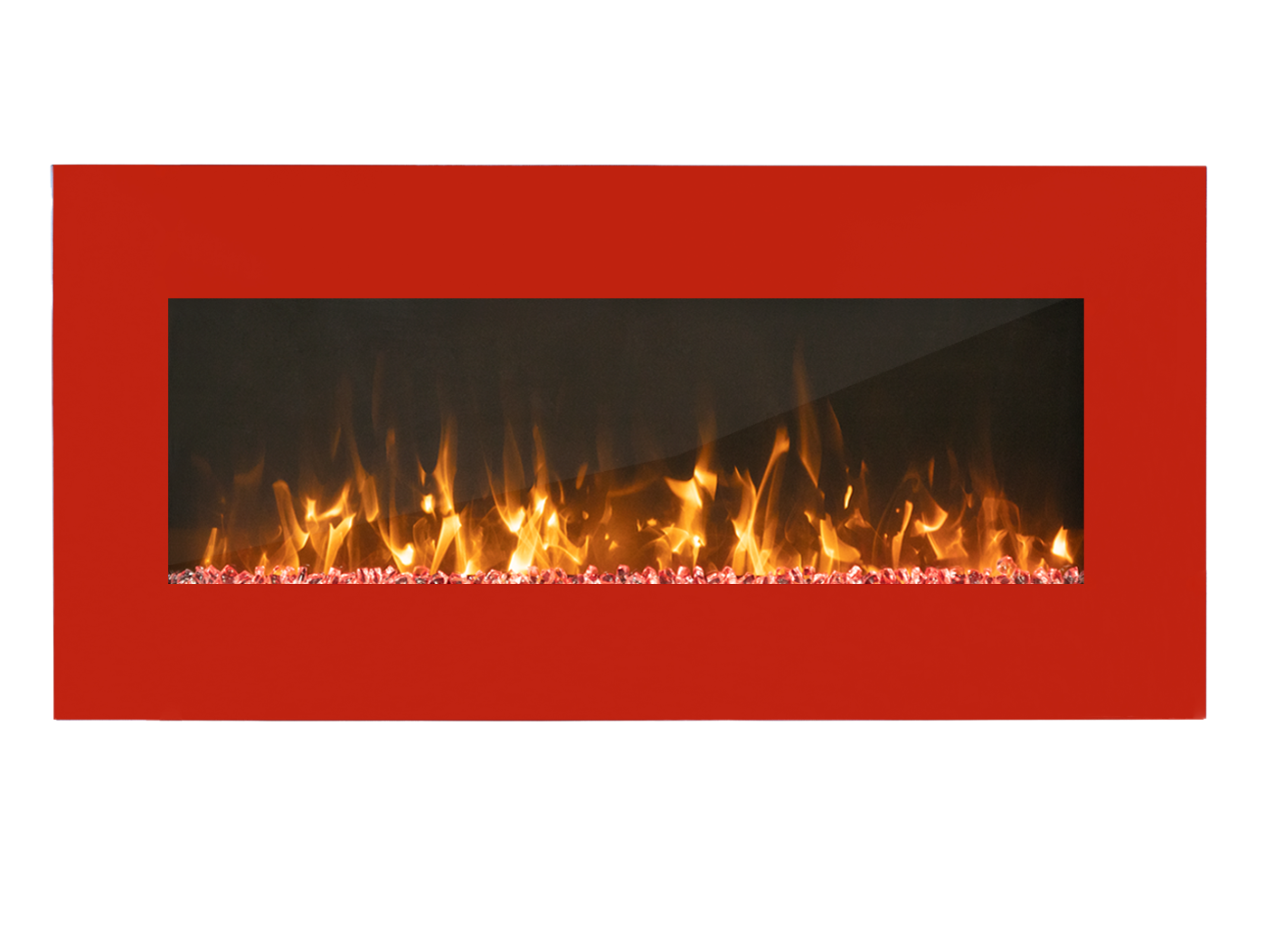

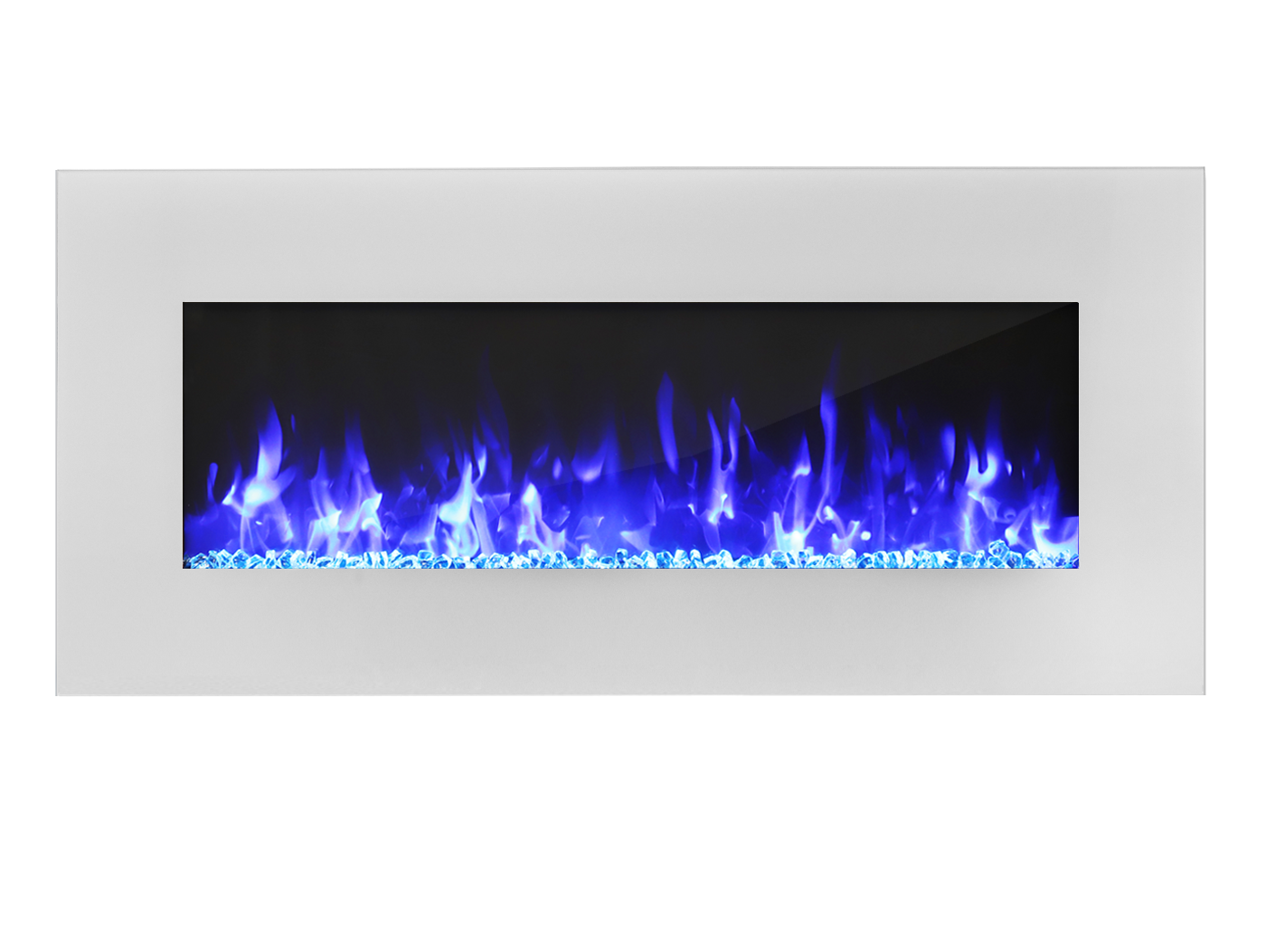

•There is 3 color model for your option, black color brings a sense of elegant style to your space; white color is easy to match with your light color furniture; red color can quickly catch people’s eyes
DIMENSIONS
| Visivo Series Key Features | |||
| Super slim 4.5 depth Top Venting | |||
| Wall hanging linear electric fireplaces | |||
| All season usage: flames operate with or without heat output | |||
| Main Dimensions | |||
| Depth with front glass | 4.75" | ||
| Back Firebox depth | 4.5" | ||
| Back Firebox width | 29.5"/ 35.5"/ 43.5"/ 53.5"/ 65.5" | ||
| Back Firebox height | 17" | ||
| Front Width | 36"/ 43"/ 50"/ 60"/ 72" | ||
| Front Height | 19.5" for 36"/ 43"/ 50"/ 60"/ 72" | ||
| Ember bed depth | 3/4" | ||
| View area height | 9 3/5" for for 36"/ 43"/ 50"/ 60"/ 72" | ||
| View area width | 27.46"/ 33.46"/ 41.46"/ 51.46"/ 63.46" | ||
| PRODUCT DIMENSIONS | |||||||
| Model# | A | B | C | D | E | F | G |
| WTS3DWF43B/W/R/G | 36'' | 19.5'' | 4.5'' | 17'' | 29.5'' | 9.6'' | 27.46'' |
| WTS3DWF43B/W/R/G | 43'' | 19.5'' | 4.5'' | 17'' | 35.5'' | 9.6'' | 33.46'' |
| WTS3DWF50B/W/R/G | 50'' | 19.5'' | 4.5'' | 17'' | 43.5'' | 9.6'' | 41.46'' |
| WTS3DWF60B/W/R/G | 60'' | 19.5'' | 4.5'' | 17'' | 53.5'' | 9.6'' | 51.46'' |
| WTS3DWF72B/W/R/G | 72'' | 19.5'' | 4.5'' | 17'' | 65.5'' | 9.6'' | 63.46'' |
Fireplace Type: | Top-View |
| Available Models: | 36, 43, 50, 60, 72 |
| Depth: | 4.75” including the front glass 4.5” firebox |
SPECIFICATIONS
Technical Specification | |
Product Finish | Black/Red/ White/Gray |
Wattage | 1500W |
Voltage | 120V |
BTU | 5000BTU |
Product Depth | 4.75" |
Product Height | 19.5" |
Product Weight | 104.12 LBS |
Timer | 1 |
Remote Control | Yes |
Built-in Thermostat | Yes |
Automatic Shut-off | Yes |
Power Souce | Electric |
INSTALLATION
Easy-to-use builder's brackets provided for installation:

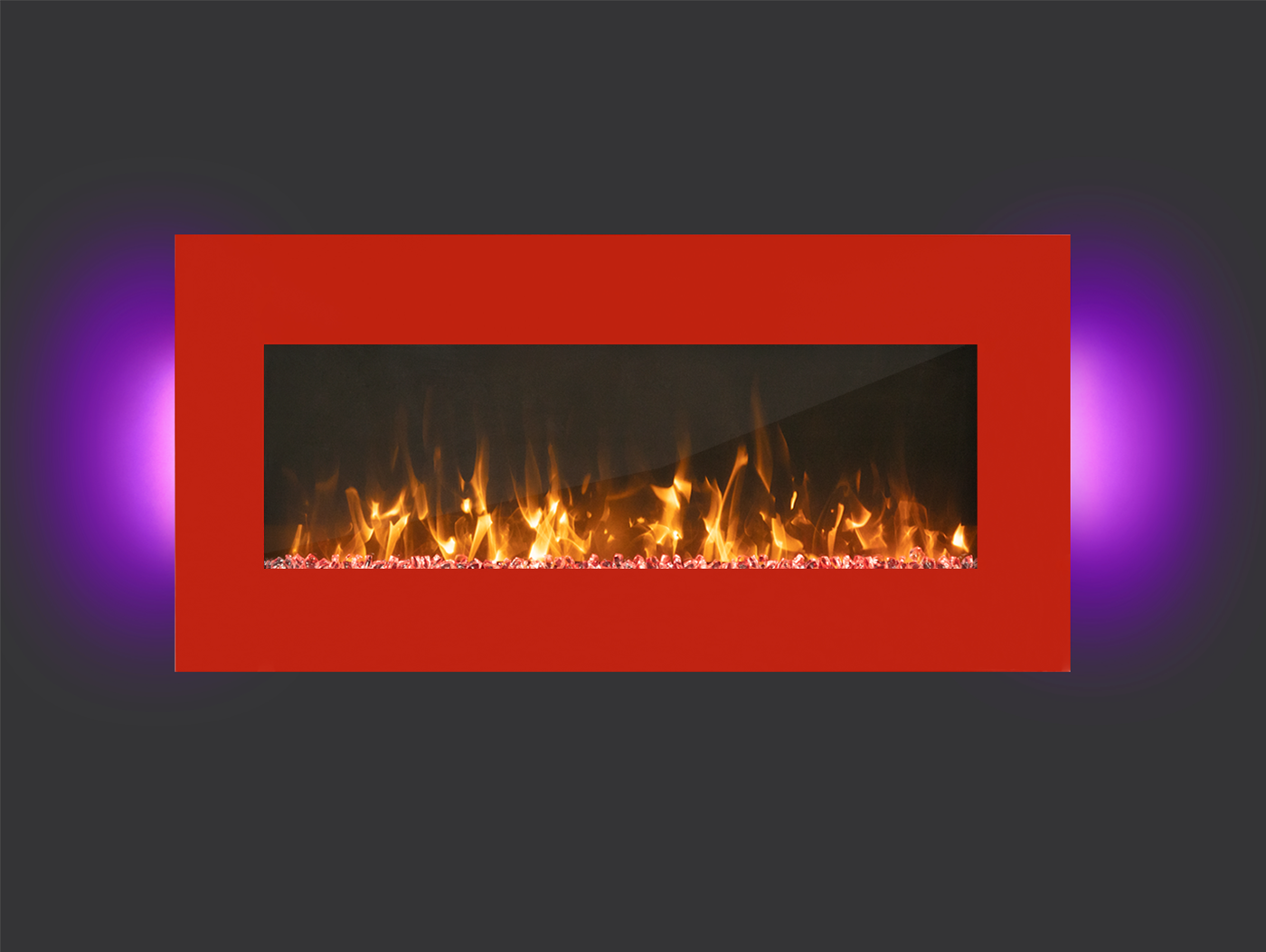

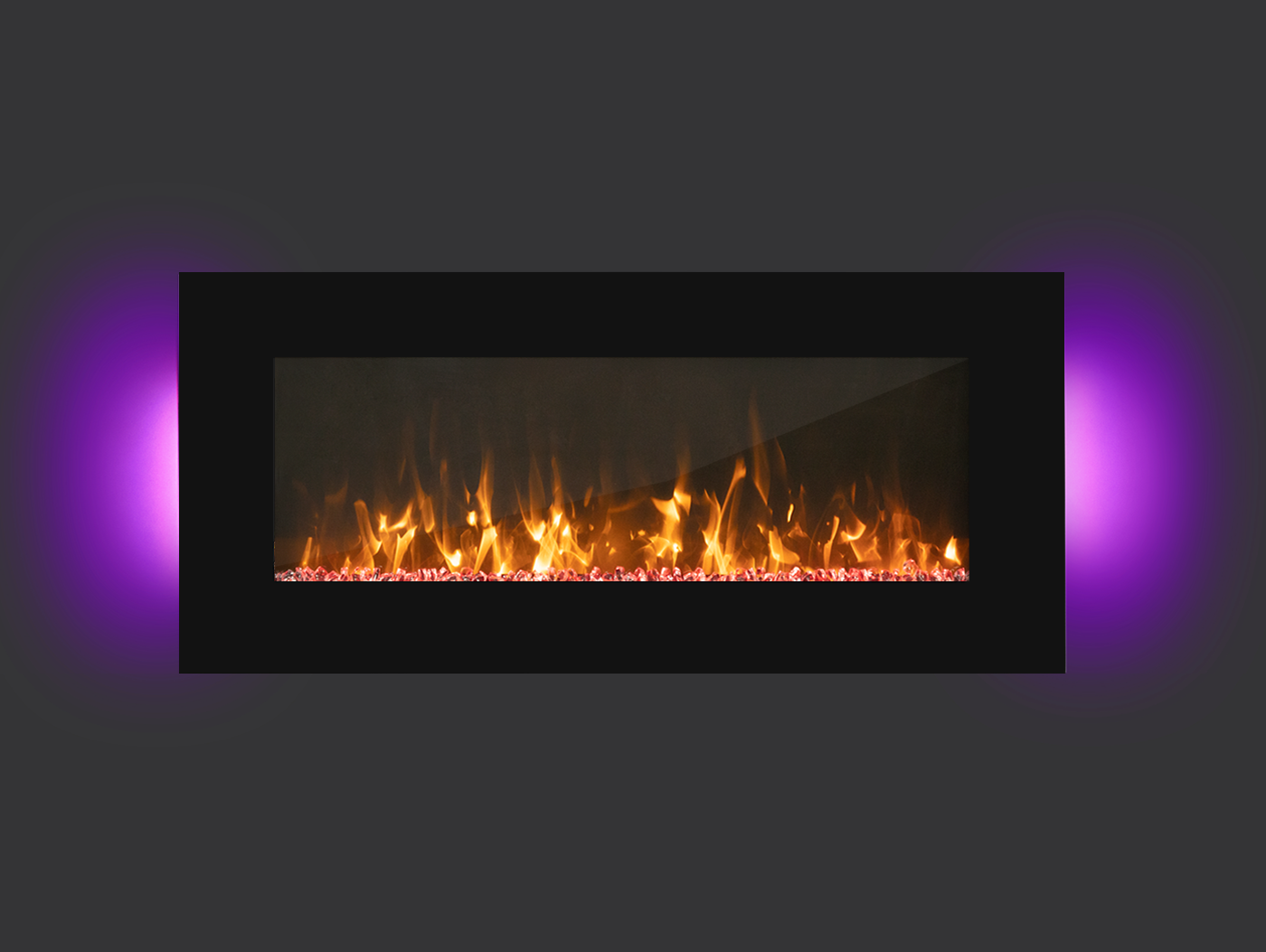

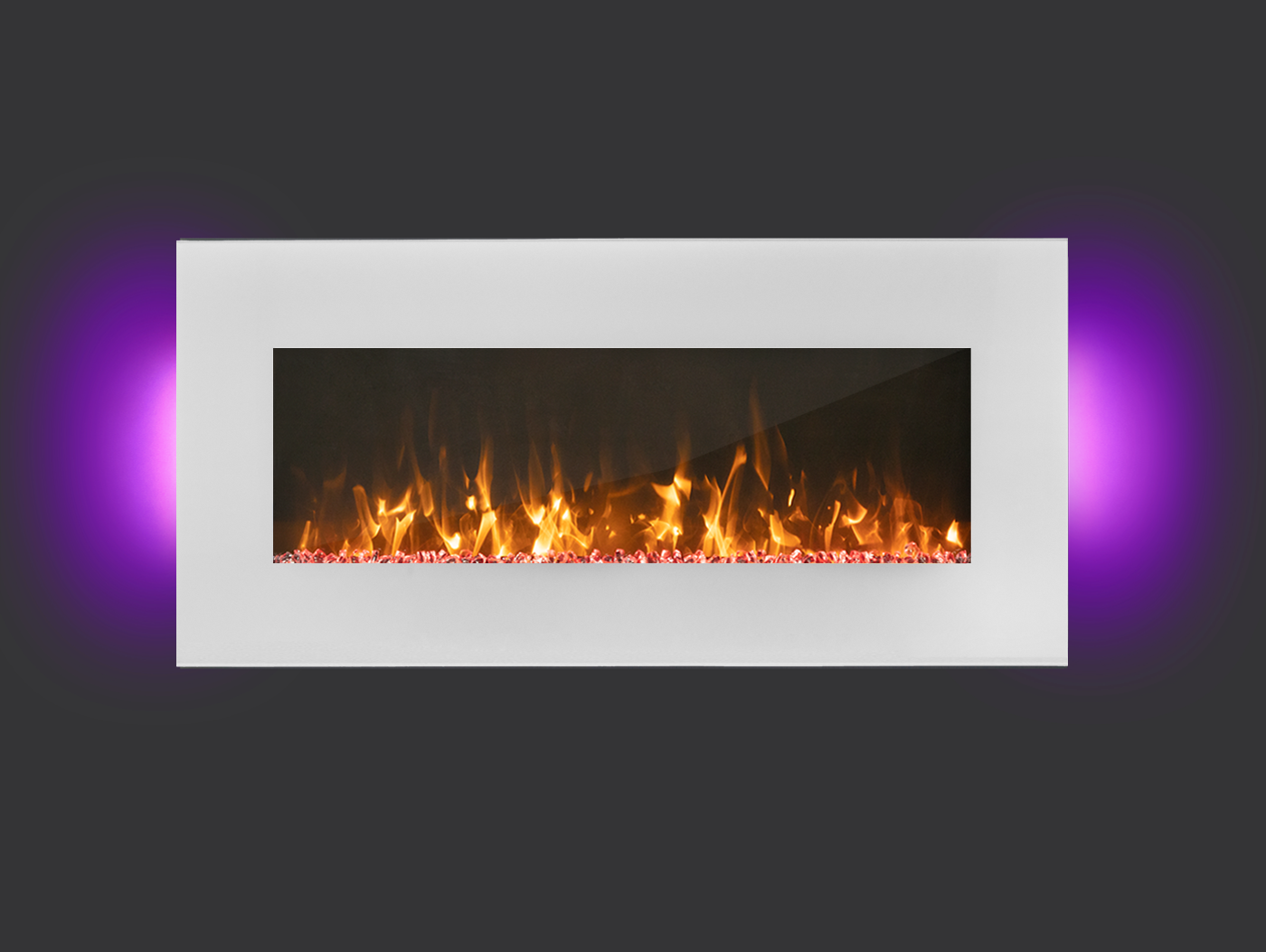

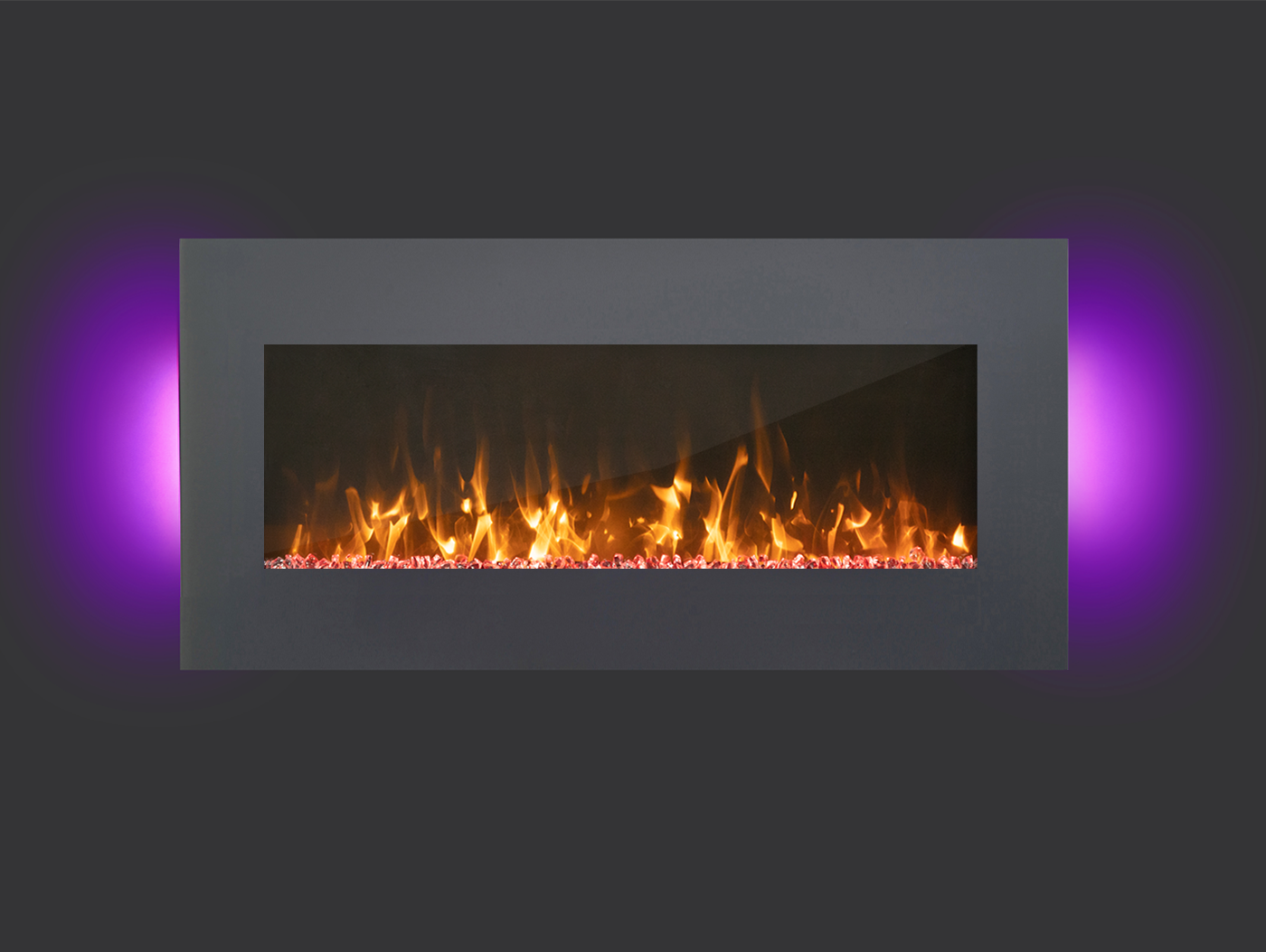

Wall Mounted: Use with backlights

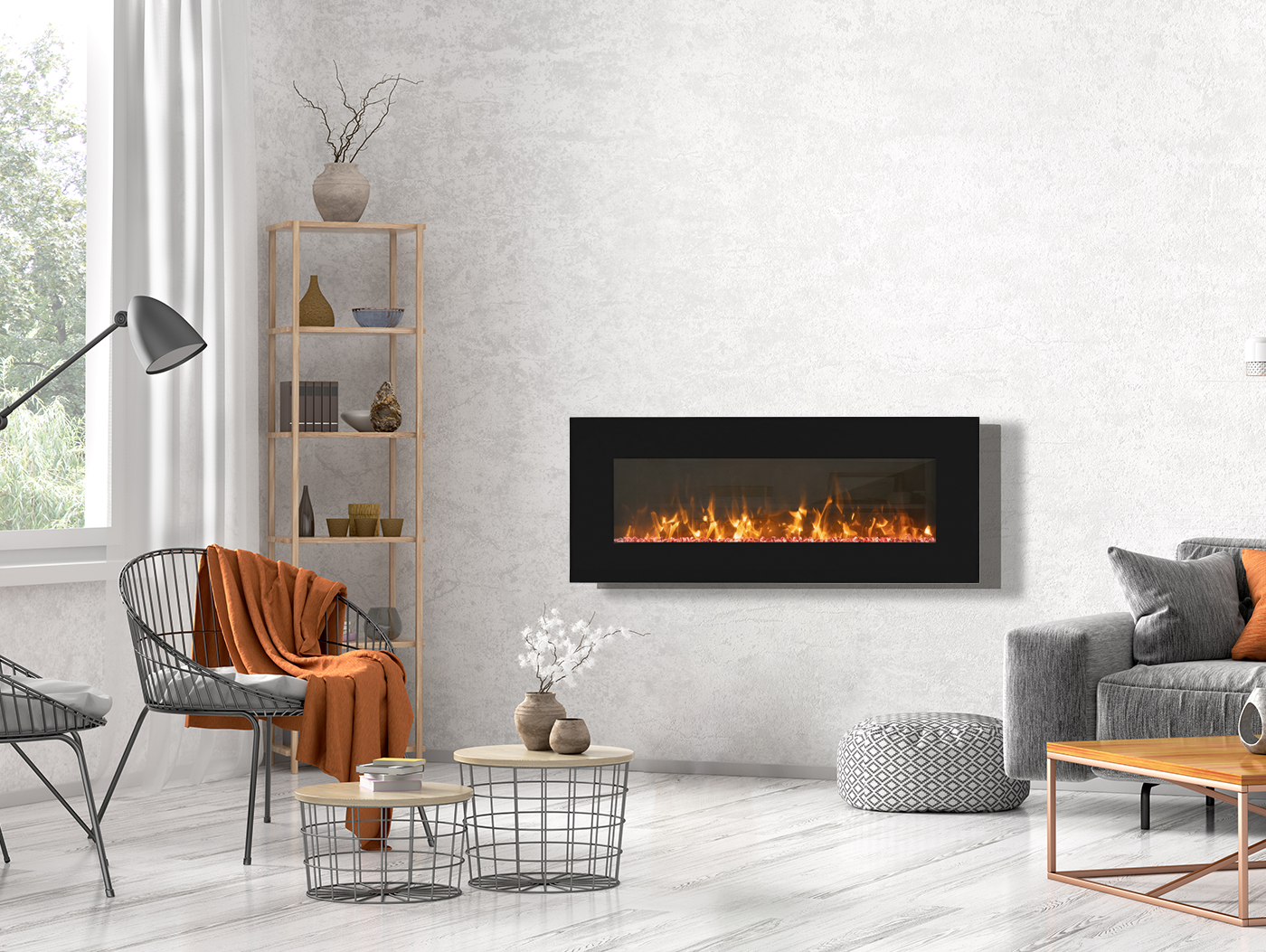

The top venting series electric fireplace only available wall mounted install method.
| INSTALLATION | |
| NO | Recess Mount |
| YES | Wall hanging |
| NO | Built in |
| ELECTRICAL | |
| Heater | 1500W/5000BTU |
| Up to 10,000BTU's &3,000 Watts | |
| Heater wire option | Yes |
| Plug in | Yes |
NOTICE:
For safety issure
When install the fireplace please make sure no anything cover the venting area.
| ITEM NUMBER | Height | Width |
| WTS3DWF36B/W/R/G | 19.5'' | 36'' |
| WTS3DWF43B/W/R/G | 19.5'' | 43'' |
| WTS3DWF50B/W/R/G | 19.5'' | 50'' |
| WTS3DWF60B/W/R/G | 19.5'' | 60'' |
| WTS3DWF72B/W/R/G | 19.5'' | 72'' |
